在所述热电元件的热电材料的芯材的Bi2Te3广泛使用的金属是一种强氧化气氛 特别是当在现有区域熔化法制造的金属 和所述内金属的强度小于 根据在约0.8毫米〜2毫米自己的目的锭的形式的Bi2Te3生产酒吧它可以根据在切割期间的总的五次会议引起金属切削过程内使用差的机械冲击的。

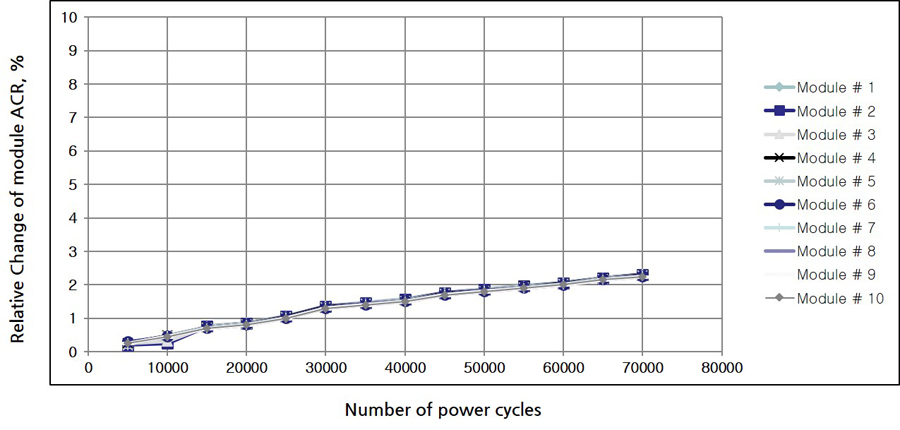

因此,用于验证所述热电模块的耐久性的方法,但也有各种系统 通过在热电元件的循环测试,它是用于验证耐久性和电击和热冲击的常用方法。

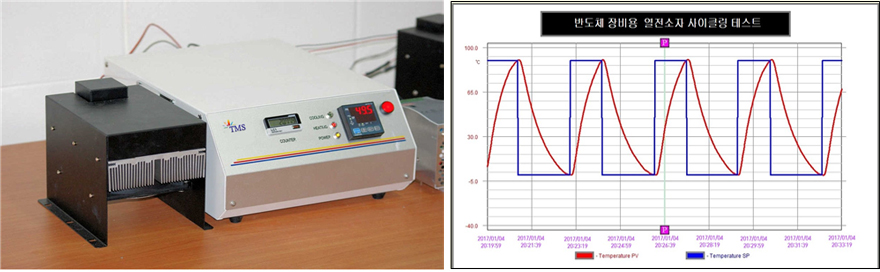

冷,通常是在热电元件上它是在配备有用于测量耐久性的热元件的冷却装置来定位的温度传感器 1,改变热元件的温度为0℃〜90℃〜0℃周期和简单地继续进行循环测试多达您的标准时间进行。
Division | T MS CYCL-001A | |||
---|---|---|---|---|
Generals | Installation | In and out door | ||
Operation | -20 ~ 50 Celsius(℃) | |||
Humidity | 40 ~ 80 % RH | |||
Input Current | AC Free Volt ( 2 PH AC 220 ) | |||
Heatsink Temp control range | -20 ℃ ~ 150 ℃ | |||
Operation Methods | Auto setting or manual | |||
Accuracy | ± 0.1 ℃ | |||
Operation Voltage | MAX DC 48V / 20 VA | |||
Operation Current | MAX 20 A | |||
AC Power Input | 1Kwatt | |||
Safety | Over Current Stopper | |||
High temp FUSE | ||||
Operation | Operation | Operation Signal | Operation | Yellow Light |
Temp | Green Light | |||
Heating | RED Light | |||
Now Temp | Upper Number | |||
Target Temp | Down Number | |||
Temp | Temp Sensor | PT 100 Ohm (Changable) | ||
Operation | manual | Possible | ||
PC Control | Possible( Temp data save, printing ) | |||
Running Option | Communication Port | 232/422/485 | ||
Auto Graph save | Possible | |||
Cysling Temp setting | Possible | |||
Auto program Control | Possible ( Without Operator ) | |||
Temp data saving | EXCEL Saving | |||
Data Output | PC Monitor | |||
Printer | ||||
Others | System colour | Ivory, yellow | ||
Dimension | testing Engine | 300 x 300 x 500 mm (Changable) | ||
Controller | One Body with test System | |||
Weight | 10 Kg |
