Auto Temp Controller - Multi CH Temp Controller
Multi Ch Temp Controller

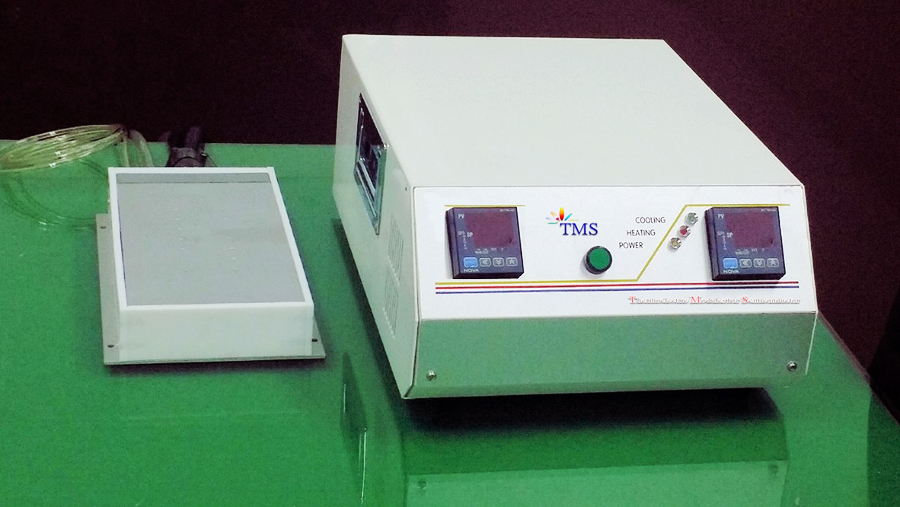

This automatic temperature controller is developed to realize various temperature of cooling, heating, and constant temperature engine using thermoelectric elements. It is a temperature controller that controls the temperature of several thermoelectric cooling engines.
Advantages of our temperature controller
- All in One (power supply, all thermostat system)
- RS 232, 422, 485 communication support
- Temperature graph creation, screen real time measurement, Excel save, printer output support.
| Part No. | Voltage(DCV) | Current(DCA) | Power(watt) | Dimension(mm) | accuracy(℃) | AC Voltage |
|---|---|---|---|---|---|---|
| PW12V7A | 12 | 7 | 84 | 270x300 x140 | +/- 0.1 ℃ | AC 220V Phase |
| PW12V12A | 12 | 0 | ||||
| PW24V10A | 24 | 10 | 240 | |||
| PW24V20A | 20 | 0 | ||||
| PW24V25A | 25 | 0 | ||||
| PW36V10A | 36 | 10 | 360 | |||
| PW36V20A | 20 | 0 | ||||
| PW36V30A | 30 | 0 | ||||
| PW48V10A | 48 | 10 | 480 | 320x 320x 170 | ||
| PW48V20A | 20 | 0 | ||||
| PW48V30A | 30 | 0 |
* Other customer needs system development and supply available.

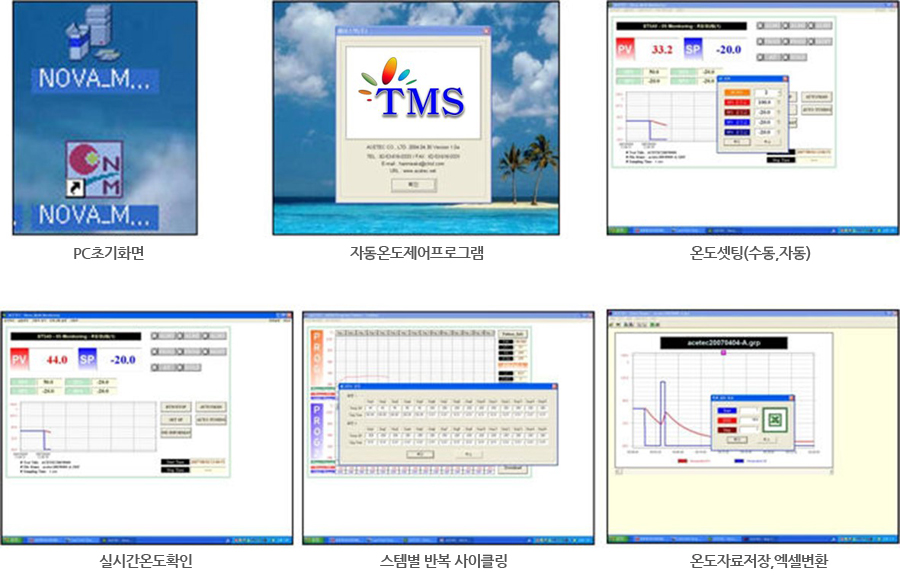

Program control using PC

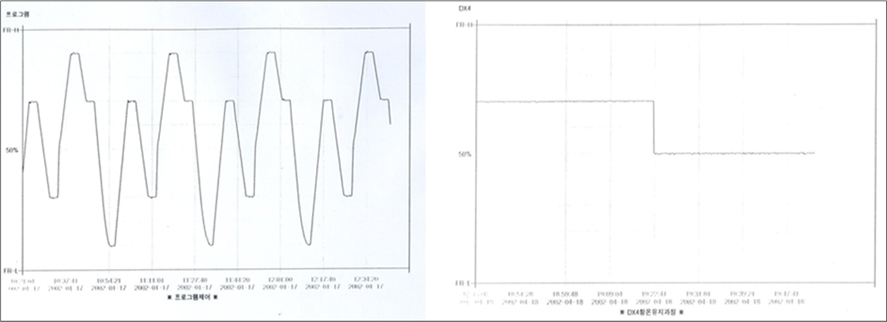

Cycling Control and High Precision Temperature Control Graph
